| Place of Origin: | China |
|---|---|
| Brand Name: | Qianyi |
| Certification: | CE |
| Model Number: | AGL-125 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Support Sea freight |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 300 Set/Sets per Month |
| Structure Weight: | 263kg | Working Width: | 1200mm |
|---|---|---|---|
| Flail Type: | Y Blade / Hammer | Vertical Extending Distance: | 1415mm |
| Horizontal Extending Distance: | 1870mm | PTO Speed: | 540r/min |
| High Light: | 1200mm Ditch Flail Mower,Verge Ditch Flail Mower,Y Blade verge flail mower |
||

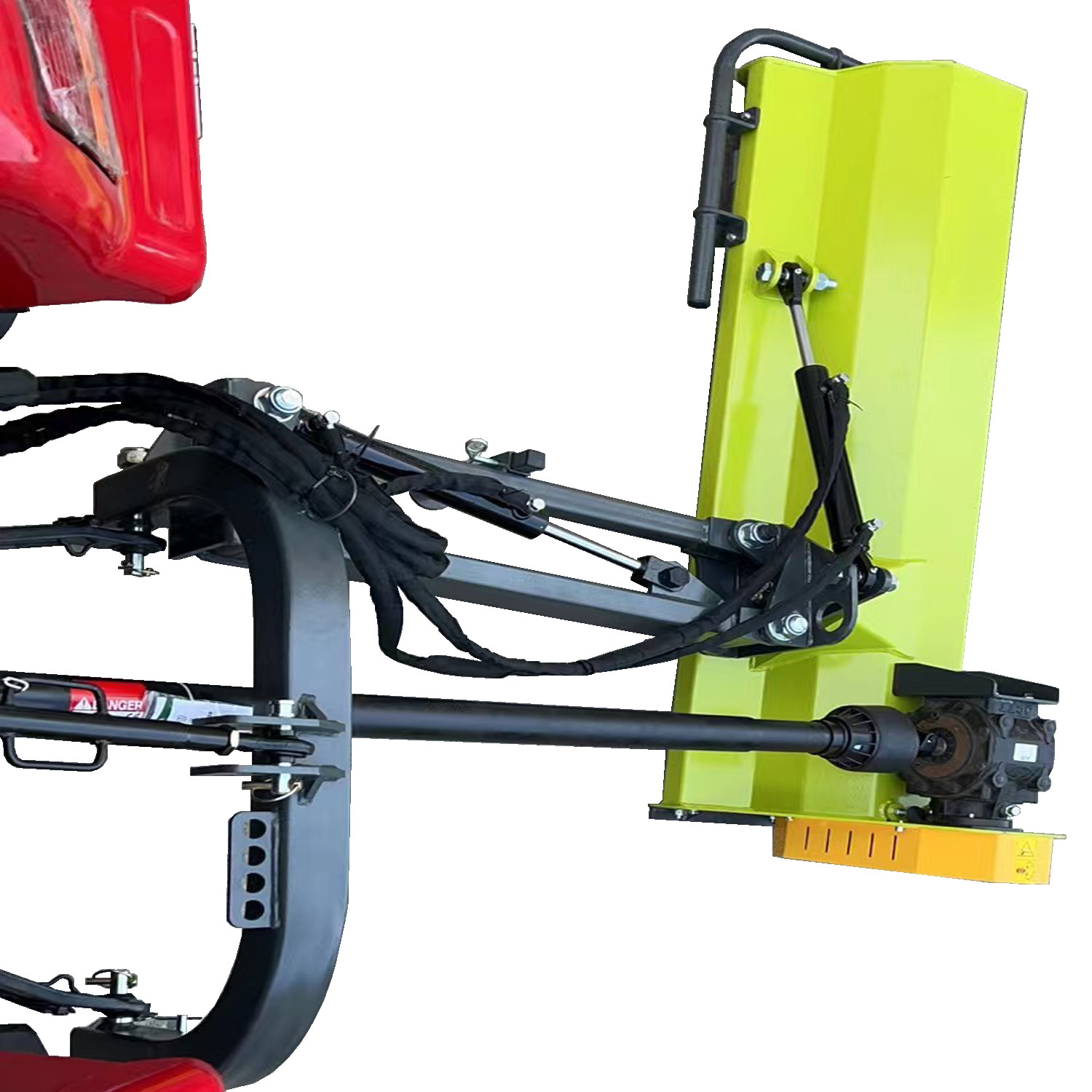

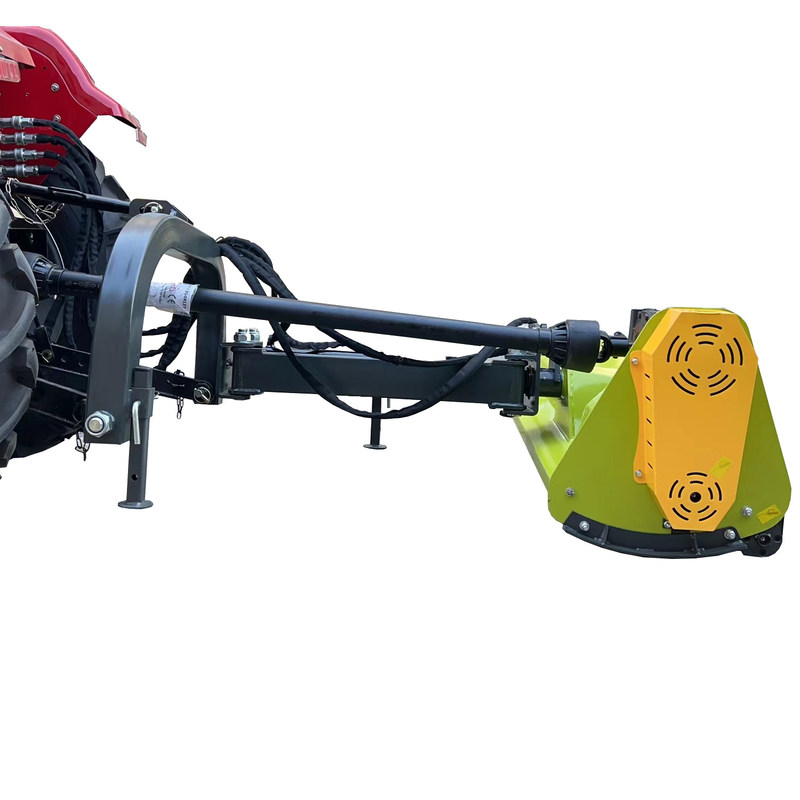

Verge Ditch Flail Mower Mulcher For Compact Tractor
The verge mower is ideal for roadside verge,tree trimming and general mulching. Side and inclining is hydraulic adjusted. 90°tilt up 55°tilt down or can cut directly behind the tractor. High power 50hp gearbox. Self leveling. High strength mulching blades. Safety fenders behind the mower to prevent the mud or small stones from the mower deck. Ideal for the smaller tractors due to their lighter weight design than the AGF model. Available cut sizes ranging from 1.25-1.65m.
Flail Mower Specification:
| MODEL | AGL-125 | AGL-145 | AGL-165 |
| Structure Weight | 263kg | 280kg | 298kg |
| Tilt-Up Angle | 90° | 90° | 90° |
| Tilt-Down Angle | 55° | 55° | 55° |
| Cutting Width | 1200mm | 1400mm | 1600mm |
| Flail Type | Y Blade / Hammer | ||
| Number Of Flails | Hammer: 18 / Y Blade: 36 | Hammer: 22 / Y Blade: 44 | Hammer: 26 / Y Blade: 52 |
| Vertical Extending Distance | 1415mm | 1415mm | 1415mm |
| Horizontal Extending Distance | 1870mm | 2070mm | 2270mm |
| PTO Speed | 540r/min | 540r/min | 540r/min |
| Tractor HP | 20-40hp | 30-45hp | 40-50hp |
Design Advantage:
1. Hydraulic-driven system.
2. Simple structure in linear type, easy in installation and maintenance.
3. Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
4. High-pressure double crank to control the die opening and closing.
5. Running in a high automatization and intellectualization, no pollution.
6. Apply a linker to connect with the air conveyor, which can directly inline with the filling machine.
7. Spiral blade axle to save the power and protect the gearbox.
| Feature of ATV flail Lawn Mower |
| 1. Flail mower with a gasoline engine of 15/22HP, it can be connected to any vehicles behind; |
| 2. Electrical power start can be available as a choice; |
| 3. Precise dynamic balance to be done on the blade shaft; |
| 4. The blades wear-resisting performance is good and not easy aging; |
| 5. Mowing height can be adjusted,at the back of the bar is used to adjust the height of the wheel to adjust the height of the knife to achieve mowing height; |
| 6. CE or EPA emission approved; |
| 7. Easy operation , high efficiency; |
| 8. Wide tires provides bearing capacity and strong buffering capacity excellent. |
Details:
Our advantages
1. Factory direct price, high quality, delivery on schedule, perfect after-sales service;
2. Equipped with laser cutting, powder coat paint lines, highly efficient production line;
3. CE certification, strictly obey international standards;
4. With skilled OEM experience for distributors in Europe, Australia, etc, recommend popular implements for markets;
5. Our team: over 10-year-experience the technical engineers and sales department,fulfill customization and trading requirement.
About us:
Changzhou Qianyi Machinery Technology Co., Ltd's existing staff of 50 people, in 2021 passed the ISO9001 quality system certification and passed CE certification.
We provide good design, to help customers reduce costs of development and improve production efficiency. With complete testing equipment, strict quality control, and abundant technical force, our machines are mainly exported to European, North American, and Southeast Asian countries. All of our machines are with one year warranty. We often insist on one principle” Better quality! Better service!Better price!”
FAQ
1. What are your main products?
Professional implements for tractors, wheel loaders, skid steers, mini excavators, ATV/UTVS, etc.
2. What are your terms of payment?
T/T 30% deposit in advance, the balance against a copy of B/L.
3. How long is the delivery time?
Generally, roughly 45~60 days for the bulk order.
4. Do you accept the customization order?
Absolutely welcome. We have a professional engineer to service your personalized order .
5. How about the after-sales service?
The whole machine is guaranteed for one year, and spare parts services are provided for a lifetime.
