| Place of Origin: | China |
|---|---|
| Brand Name: | Qianyi |
| Certification: | CE |
| Model Number: | QYM110 |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Support Sea freight |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 300 Set/Sets per Month |
| Structure Weight: | 240KG | Working Width: | 1050 |
|---|---|---|---|
| Flail Type: | Hammer | NO. Of Flail: | 18 |
| Tractor HP: | 20HP-30HP | Side Shift Type: | Mechanical/Hydraulic |
| High Light: | Hydraulic Compact Tractor Flail Mower,Heavy Duty Compact Tractor Flail Mower,240KG tractor flail mower |
||

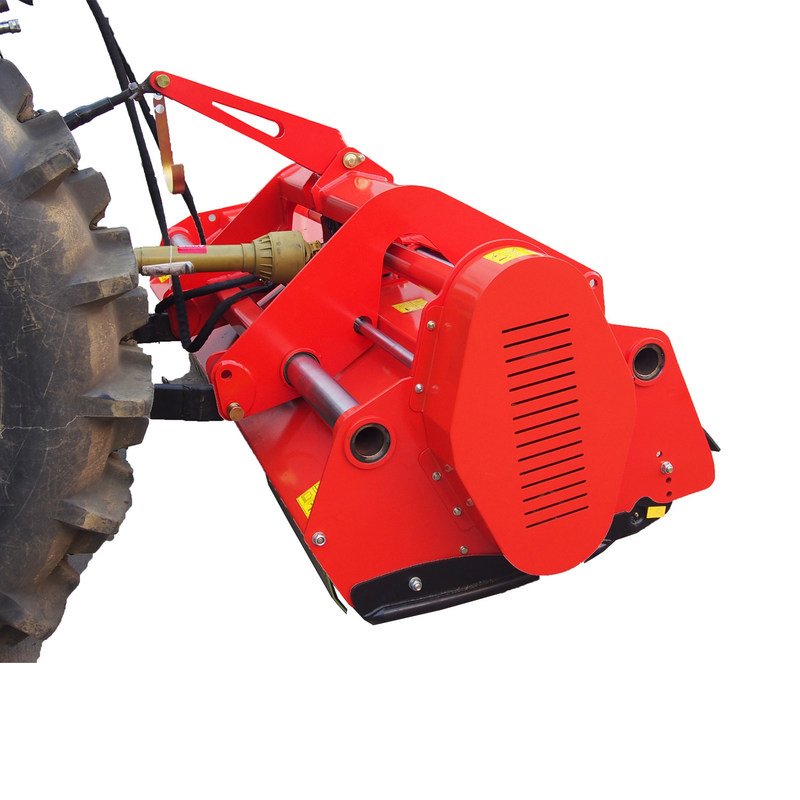

Hydraulic Offset Heavy Duty Flail Mower
The QYD series heavy flail mowers are equipped with a very heavily built frame and a very powerful drive with 1000 revolutions gearbox. The rotor generates an enormous impact strength with a very high capacity as a result.
This high-capacity machine works very well in processing green manure and corn stover but is also suitable for road verge maintenance.
The mower is equipped with hydraulic offset as standard. And it is equipped with 1.2 kg heavy duty flails.
| MODEL | QYM110 | QYM130 | QYM150 |
| Structure Weight | 240KG | 280KG | 320KG |
| Working Width | 1050 | 1250 | 1450 |
| Flail Type | Hammer | Hammer | Hammer |
| NO. Of Flail | 18 | 22 | 26 |
| Tractor HP | 20HP-30HP | 20HP-30HP | 30HP-50HP |
| Side Shift Type | Mechanical/Hydraulic | Mechanical/Hydraulic | Mechanical/Hydraulic |
Design Advantage:
1. Transmission of flail mower: By sturdy toothed belts.
2. Gearbox of tractor flail mower is made of gravity casting iron. Material performance is better. Not easy broken.
3. With adjustable rear roller, the mowing height can be adjusted.
4. The structure of farm flail mower is firm and stable.
5. High welding processes, mainly for 15-30HP tractor
6. With front protection, it can prevent splashing.
7. Y shape blades, hammer and vertical blades for grass. With double blades.
8. Cat. I universal three-point hitch cardan shaft.
| Feature of ATV flail Lawn Mower |
| 1. Flail mower with a gasoline engine of 15/22HP, it can be connected to any vehicles behind; |
| 2. Electrical power start can be available as a choice; |
| 3. Precise dynamic balance to be done on the blade shaft; |
| 4. The blades wear-resisting performance is good and not easy aging; |
| 5. Mowing height can be adjusted,at the back of the bar is used to adjust the height of the wheel to adjust the height of the knife to achieve mowing height; |
| 6. CE or EPA emission approved; |
| 7. Easy operation , high efficiency; |
| 8. Wide tires provides bearing capacity and strong buffering capacity excellent. |
Details:
Our advantages
1. Factory direct price, high quality, delivery on schedule, perfect after-sales service;
2. Equipped with laser cutting, powder coat paint lines, highly efficient production line;
3. CE certification, strictly obey international standards;
4. With skilled OEM experience for distributors in Europe, Australia, etc, recommend popular implements for markets;
5. Our team: over 10-year-experience the technical engineers and sales department,fulfill customization and trading requirement.
About us:
Changzhou Qianyi Machinery Technology Co., Ltd's existing staff of 50 people, in 2021 passed the ISO9001 quality system certification and passed CE certification.
We provide good design, to help customers reduce costs of development and improve production efficiency. With complete testing equipment, strict quality control, and abundant technical force, our machines are mainly exported to European, North American, and Southeast Asian countries. All of our machines are with one year warranty. We often insist on one principle” Better quality! Better service!Better price!”
FAQ
1. What are your main products?
Professional implements for tractors, wheel loaders, skid steers, mini excavators, ATV/UTVS, etc.
2. What are your terms of payment?
T/T 30% deposit in advance, the balance against a copy of B/L.
3. How long is the delivery time?
Generally, roughly 45~60 days for the bulk order.
4. Do you accept the customization order?
Absolutely welcome. We have a professional engineer to service your personalized order .
5. How about the after-sales service?
The whole machine is guaranteed for one year, and spare parts services are provided for a lifetime.
