| Place of Origin: | China |
|---|---|
| Brand Name: | Qianyi |
| Certification: | CE |
| Model Number: | LS-18T |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | Support Sea freight |
| Delivery Time: | 7 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 300 Set/Sets per Month |
| Structure Weight: | 250kg | Tilling Width: | 895mm |
|---|---|---|---|
| Tilling Depth: | 150mm | No. Of Blade: | 18 |
| PTO Turning Speed: | 540r/min | Tractor HP: | 16-20hp |
| High Light: | 1045mm Heavy Duty Rotary Tiller,24 Blade Heavy Duty Rotary Tiller,PTO heavy duty tractor tiller |
||

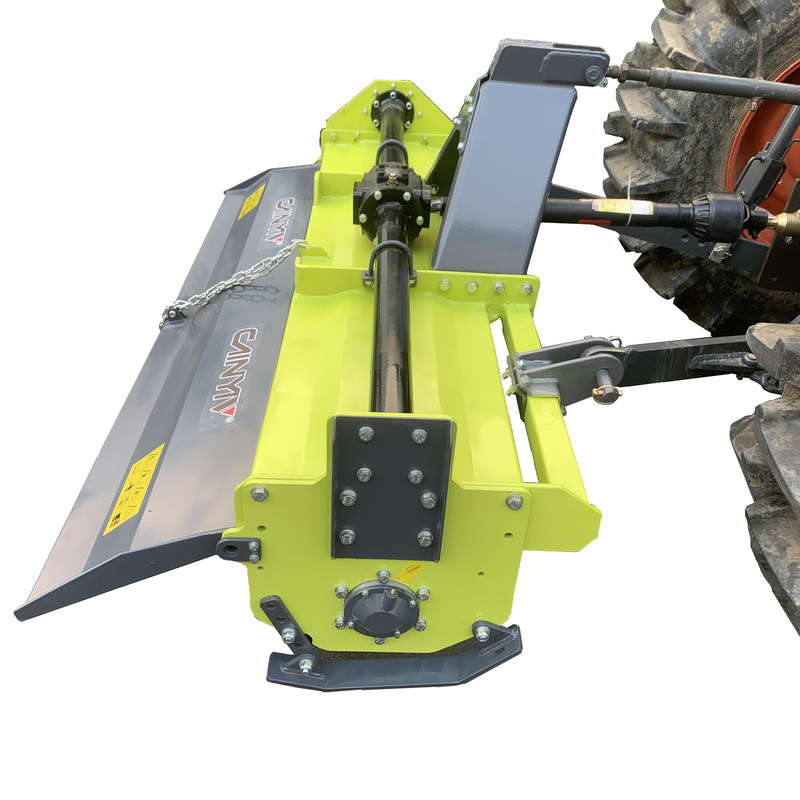

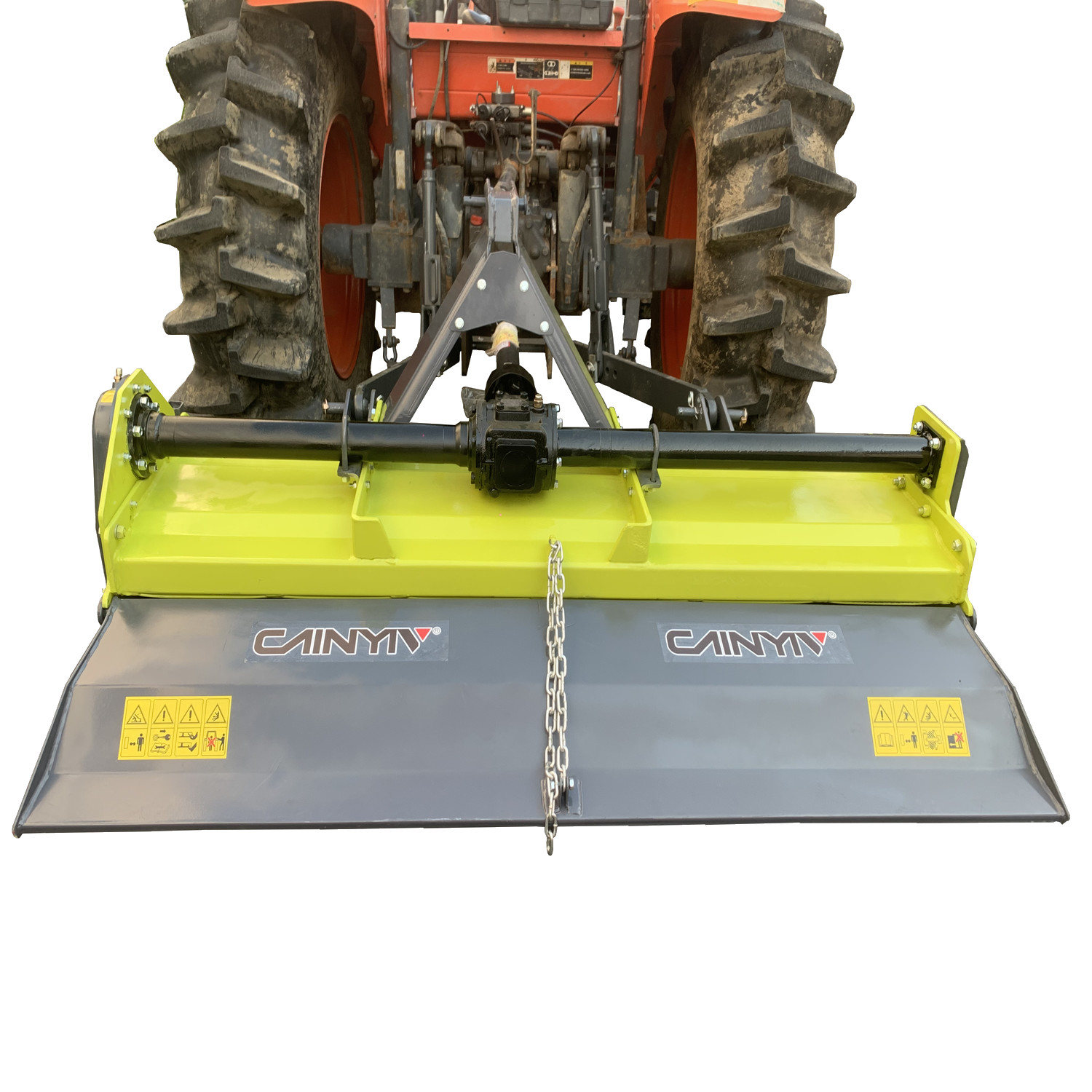

Heavy Duty Rotary Tiller Cultivator
Brief Introduction to Rotary Tiller Cultivator
Rotary tillers manufactured by Breviglieri are all PTO-driven and are used to loosen and mix both firm soil, during primary tillage, and tilled soil (e.g. during secondary tillage to prepare the seedbed).
The tilling implements, which can consist of a hoe, radial blade, or spike assemblies mounted on a horizontal rotor (4 or 6 per flange), work by cutting and ripping clods of soil.
Rotary tiller cultivation can be performed as an alternative to plowing. It is useful in that it effectively breaks up the earth, even uprooting crop residue, and therefore generally eliminates the need for additional soil preparation.
These machines are most widely utilized in the horticulture sector and on the naturally lose ground; the working depth is generally not greater than 15 cm.
Vertical Log Splitter Specification:
| MODEL | IGN 90 | IGN 105 | IGN 125 |
| Structure Weight | 250kg | 265kg | 285kg |
| Tilling Width | 895mm | 1045mm | 1245mm |
| Tilling Depth | 150mm | 150mm | 150mm |
| No. Of Blade | 18 | 24 | 30 |
| PTO Turning Speed | 540r/min | 540r/min | 540r/min |
| Tractor HP | 16-20hp | 20-28hp | 25-30hp |
| MODEL | IGN 135 | IGN 150 | IGN 180 |
| Structure Weight | 300kg | 320kg | 350kg |
| Tilling Width | 1345mm | 1495mm | 1795mm |
| Tilling Depth | 150mm | 150mm | 150mm |
| No. Of Blade | 30 | 36 | 42 |
| PTO Turning Speed | 540r/min | 540r/min | 540r/min |
| Tractor HP | 25-30hp | 30-50hp | 40-75hp |
Design Advantage:
The rotary tiller is suitable for soil preparation, in the vineyard, nursery, orchard, and for gardening. Cast-iron gearbox, side-chain drive in oil bath, automatic chain tensioner, 4 spiral blades per flange, adjustable skids to obtain the desired working depth, adjustable rear shield ensures best ground leveling, Cat. I and II universal three-point hitch, shaft support, CE safety guards.
Details:
Our advantages
1. Factory direct price, high quality, delivery on schedule, perfect after-sales service;
2. Equipped with laser cutting, powder coat paint lines, highly efficient production line;
3. CE certification, strictly obey international standards;
4. With skilled OEM experience for distributors in Europe, Australia, etc, recommend popular implements for markets;
5. Our team: over 10-year-experience the technical engineers and sales department, fulfilling customization and trading requirements.
About us:
Changzhou Qianyi Machinery Technology Co., Ltd's existing staff of 50 people, in 2021 passed the ISO9001 quality system certification and passed CE certification.
We provide good design, to help customers reduce development costs and improve production efficiency. With complete testing equipment, strict quality control, and abundant technical force, our machines are mainly exported to European, North American, and Southeast Asian countries. All of our machines are with one year warranty. We often insist on one principle” Better quality! Better service!Better price!”
FAQ
1. What are your main products?
Professional implements for tractors, wheel loaders, skid steers, mini excavators, ATV/UTVS, etc.
2. What are your terms of payment?
T/T 30% deposit in advance, the balance against a copy of B/L.
3. How long is the delivery time?
Generally, roughly 45~60 days for the bulk order.
4. Do you accept the customization order?
Absolutely welcome. We have a professional engineer to service your personalized order.
5. How about the after-sales service?
The whole machine is guaranteed for one year, and spare parts services are provided for a lifetime.
